THE PLUG MANTRA:Why is one pin in a plug thicker than the other two? Why do sparking occurs while connecting a plug in switch on mode?What is the significance of cut on the plug pins?

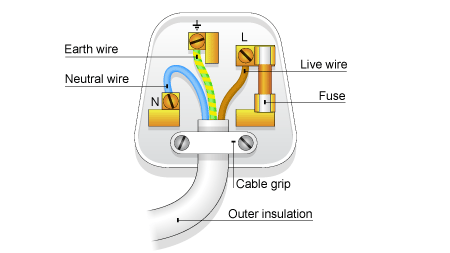

The three pins of a plug consists of a Live(L) wire connection, a Neutral (N) wire connection and an Earth(E) wire connection. The Earth wire is used for protection purposes while the other two is used to get power from the supply. As an engineer the main two criteria of designing any device, connector or instrument is economic and safety.
The Earth wire is designed thicker such that any short circuit occuring within the device or in the supply can be grounded as soon as possible so as to protect the devices. The thickness reduces the resistance of the Earth wire and the short circuit current reaches the ground easily and fast.

Now,Have you ever plug your device in with switch already on?
No?
Ok, If  you try once then you may see a spark in the Live pin or the smaller right pin. The main reason is that the Live is a phase while Neutral is the return path. To simplify, the current enters the device through live and leaves through neutral to complete the circuit. As you try to plug in with switch on, the voltage already present in the socket there occurs a flash over with the live pin to create the SPARK.Why does it is not seen in smaller left pin or Neutral pin? Because the neutral is a return path and has no voltage at the beginning.
Have you seen a cut on the pin?I mean like that of the image?Why is it there?
The answer is spring action! When the pin is inserted in the socket,the two flaps or portions come closer and then separates to virtually increase its size, thus sticks to the socket like a spring.
Have you enjoyed it?Subscribe!
Got any question? Comment!
Please share this to encourage me if you find it interesting. As the adage goes, "Sharing is Caring"!
